CMM & Visual Data
Collection:
Automated Accuracy for Quality Management

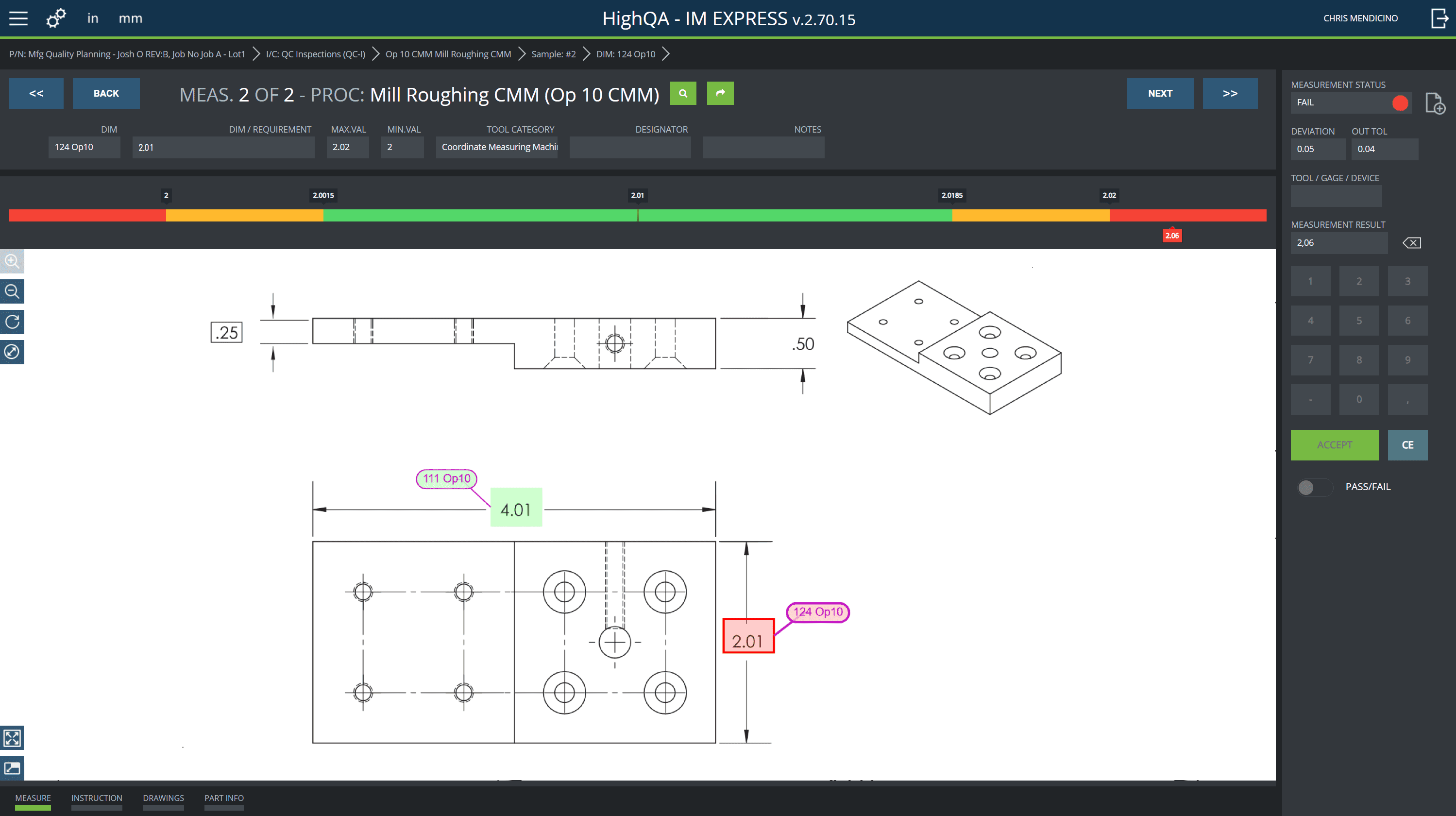

High QA’s CMM & Vision Data Collection feature enables seamless integration of automated inspection results into your quality management workflows. By capturing data directly from Coordinate Measuring Machines (CMMs), vision systems, and similar devices, this tool ensures accuracy, consistency, and efficiency throughout the inspection process.
Overview

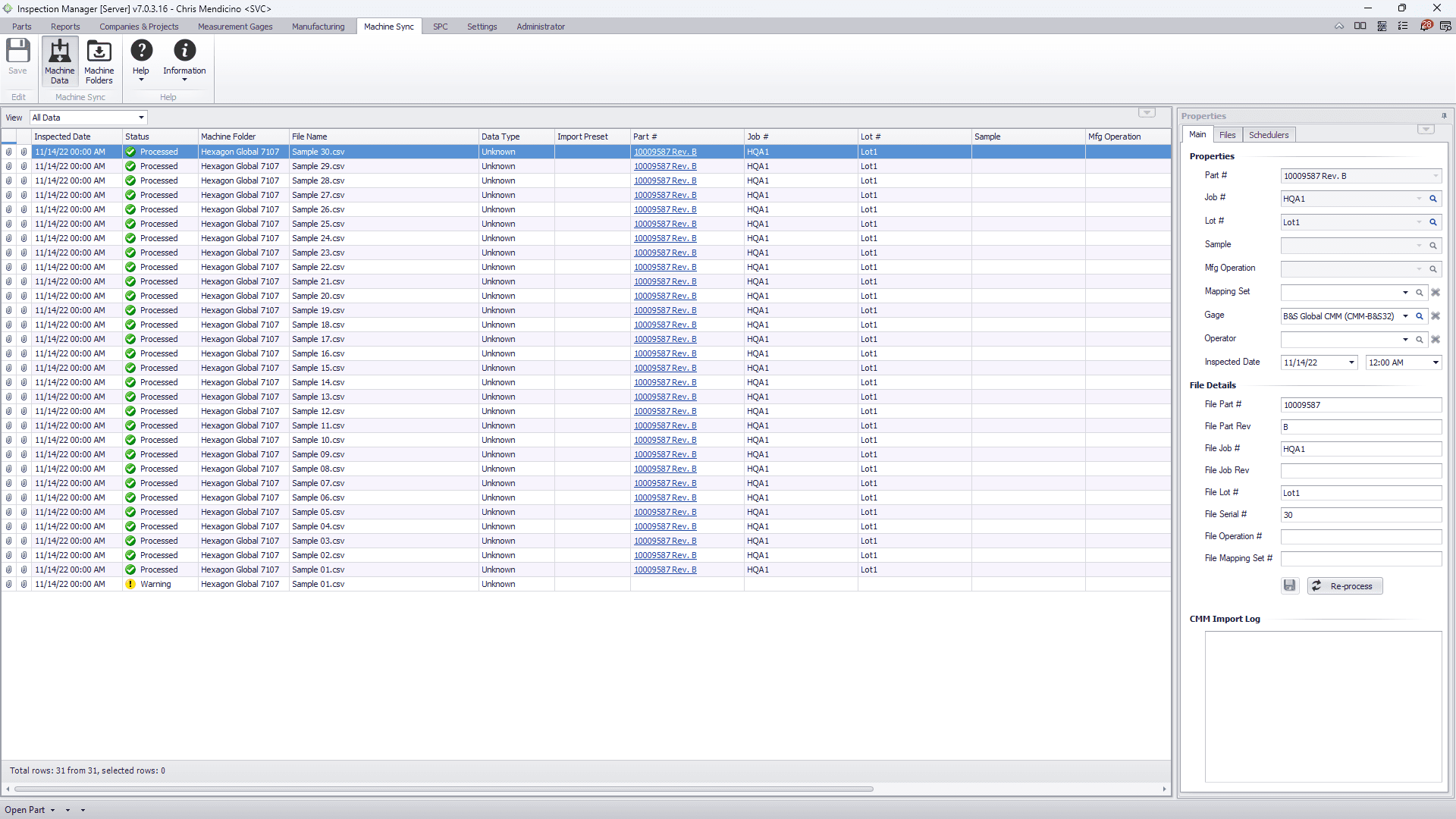

Automated inspection equipment, such as CMMs, vision systems, lasers, and machine probes, produce comprehensive results files for precise inspection of dimensional features. HighQA integrates directly with these devices, allowing you to capture and manage inspection results without manual data entry. For users with supported equipment, AMDI (Automatic Machine Data Import) can further streamline workflows by importing data files automatically.
Key Benefits
Automated Data
Import
- Streamlines inspection results collection from CMMs, vision systems, and other automated equipment.
Error-Free
Workflows
- Eliminates manual entry errors, helping to ensure consistent and accurate results.
Seamless
Integration
- Connects directly with the Bill of Characteristics (BoC) and other tools within Inspection Manager.
Flexible
Support
- Compatible with leading CMM software, including GEOPAK, PC-DMIS, MCOSMOS, and ZEISS CALYPSO.
Efficiency Without Extra Steps
With High QA, importing data from automated inspection equipment is simple:
- Connect your CMM or vision system to High QA’s IM/ 360 CORE.
- Execute inspection programs to generate results files.
- Optionally use AMDI for supported equipment to automatically import results into the BoC
Digital Gage Data
Collection:
Streamlined Precision

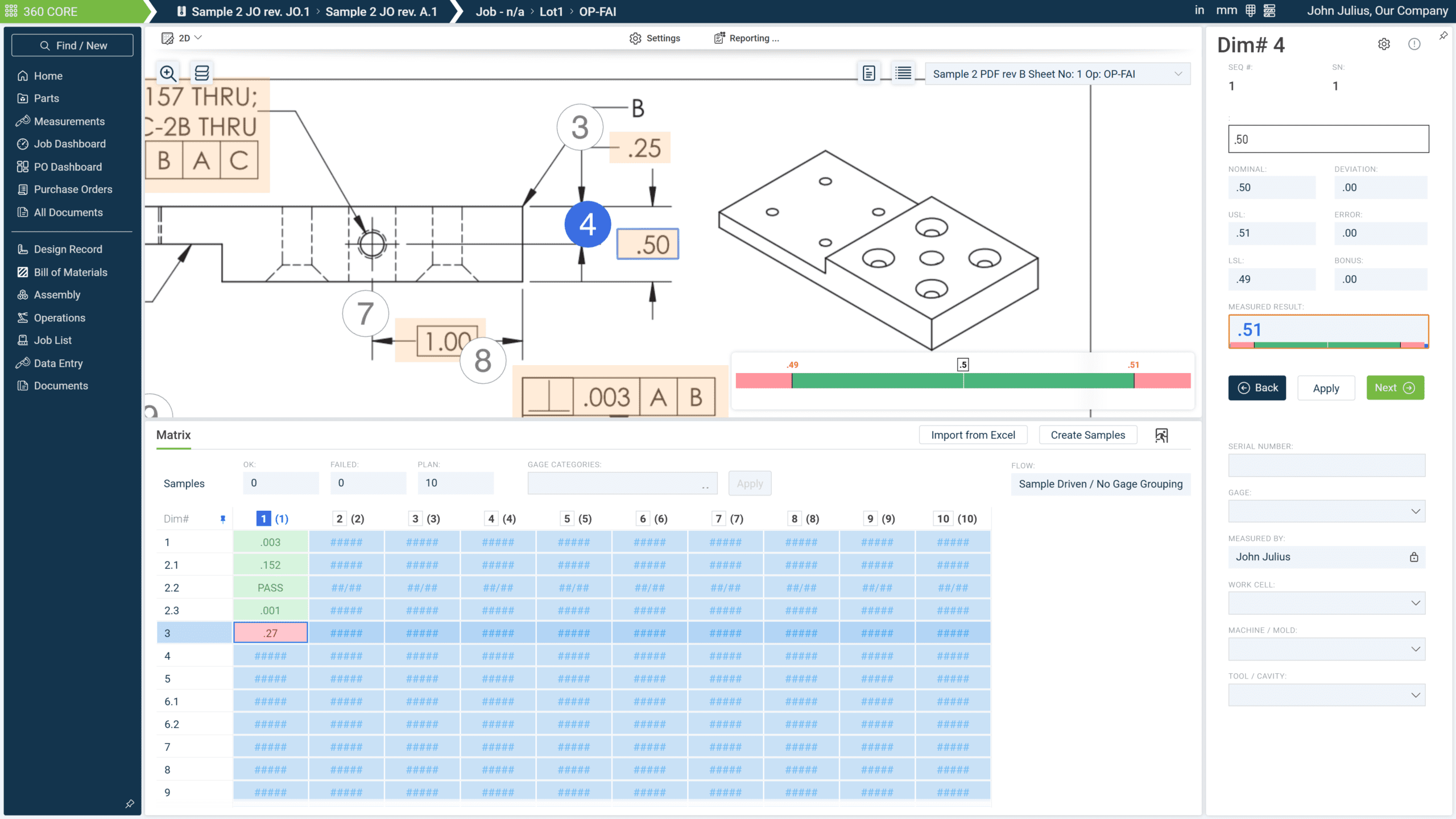

High QA’s Digital Gage Data Collection feature bridges the gap between manual and automated inspections, enabling efficient data capture from a wide range of digital gages. This tool integrates seamlessly into your quality workflows, ensuring accurate, consistent, and traceable measurements.
Overview
Manual inspections, performed with tools like calipers, micrometers, and other digital gages, often require individual measurements to be recorded manually. High QA’s Digital Gage Data Collection eliminates this inefficiency by allowing direct digital transmission of measurement data to the Inspection Manager. Additionally, for advanced setups, AMDI may be used with compatible devices to automate the import of structured data files
Key Benefits
Direct Data
Transmission
- Capture measurements with the single press of a button using USB, Bluetooth, or serial connections.
Reduced
Errors
- Avoid transcription mistakes by directly transmitting data into the BoC.
Broad
Compatibility
- Supports leading gage systems, including Mitutoyo, Starrett, and Mahr devices.
Integrated
Reporting
- Automatically populate inspection plans and reports with collected data.
Simplify the Process
With High QA, importing data from automated inspection equipment is simple:
- Connect your digital gage via USB, Bluetooth, or serial port.
- Configure the gage using High QA’s simple setup tools..
- For supported devices, use AMDI to automate data imports directly into the BoC.
Data Collection:
Centralized Inspection
Results
High QA’s Digital Gage Data Collection feature bridges the gap between manual and automated inspections, enabling efficient data capture from a wide range of digital gages. This tool integrates seamlessly into your quality workflows, ensuring accurate, consistent, and traceable measurements.
Overview
Inspection results can originate from diverse sources, from automated CMM programs to manual measurements captured with digital gages. High QA’s Data Collection feature unifies these processes by providing a centralized hub for managing and analyzing inspection data. With tools like IM Explorer and the Results Editor, users can seamlessly import, review, and update results across their workflows.
Key Benefits
Flexible Collection
Methods
- Import data from CMMs, digital gages, and manual entry systems.
Centralized Data
Management
- Ensure all inspection data is accessible in one platform.
Advanced
Navigation
- Use tools like IM Explorer to browse and manage inspection records efficiently.
Enhanced
Reporting
- Automatically generate reports that reflect real-time results from all data sources.
Take the Complexity Out of Quality
High QA’s data collection tools are designed to adapt to your needs:
- Import results directly from automated equipment or digital gages.
- Utilize AMDI only for compatible devices to streamline workflows.
- Use the Results Editor to manually input or correct data.
- Access inspection records through IM/ 360 CORE, enabling efficient review and analysis.
Discover More
Transform how you manage your tools and gages with High QA’s comprehensive management system. Schedule a demo today to learn how this feature can simplify your quality management processes, help to ensure compliance, and enhance production accuracy.
