Auto-Ballooning 2D Drawings:
Streamline Your Inspection Planning

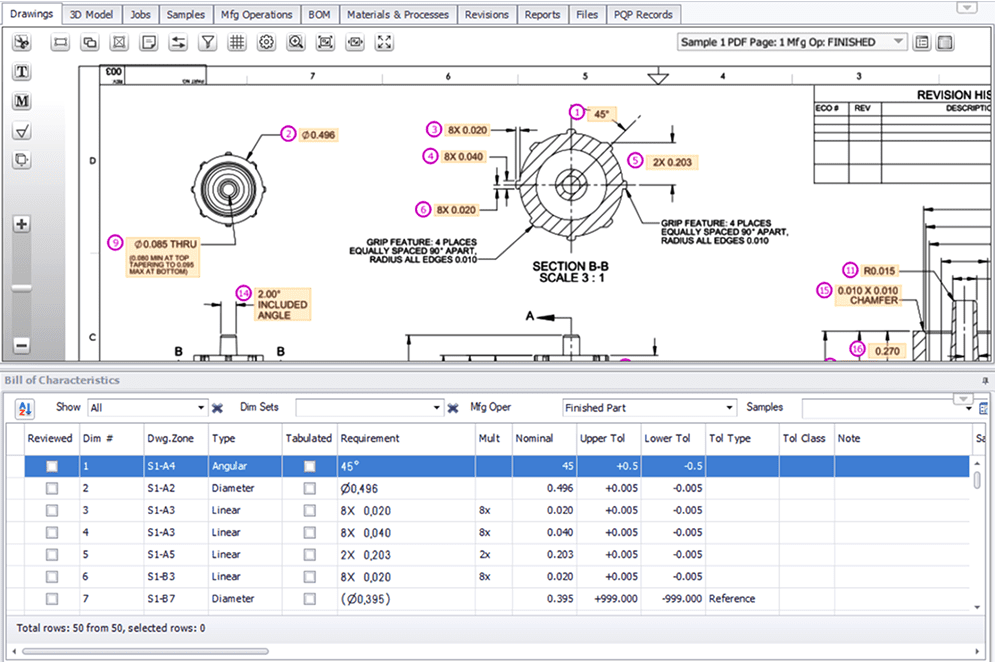

High QA’s Auto-Ballooning tool revolutionizes the way you handle 2D drawings. Using advanced OCR (Optical Character Recognition) technology, it automatically identifies dimensions, applies balloons, and populates the Bill of Characteristics (BoC). This innovative feature saves time, reduces manual errors, and helps to ensure your inspection process aligns with industry standards like AS9100 and APQP.
Overview
IM/360 CORE simplifies inspection planning by analyzing PDF and TIFF drawings, extracting GD&T requirements, and jump-starting your workflow. Whether you’re working with customer-provided drawings or in-house designs, Auto-Ballooning adapts to your needs, offering unmatched precision and efficiency.
Key Benefits
Automated
Precision
- Quickly and accurately balloon 2D drawings and avoid manual errors while streamlining data extraction.
Seamless
Integration
- Automatically populate the BoC to achieve a unified quality management process.
Customizable
Settings
- Configure ballooning preferences to meet the unique requirements of each drawing.
Flexible
Options
- Use manual ballooning only when necessary for older or non-standard drawings.

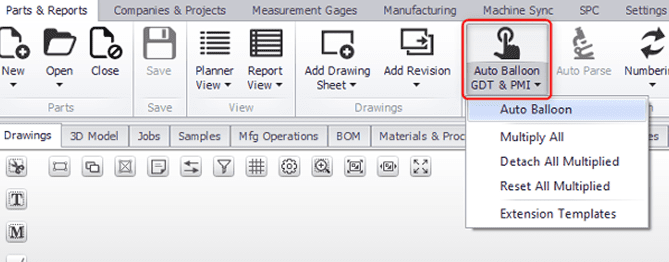

Auto Balloon GDT & PMI

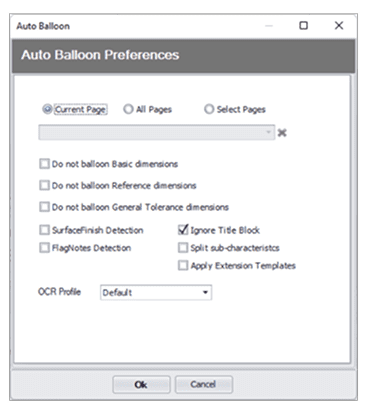

Auto Ballooning Preferences
Simplify the Process
With High QA’s Auto-Ballooning tool, you can:
- Auto-balloon entire drawings or specific pages.
- Exclude dimensions like reference dims, basic dims, or general tolerance dims.
- Detect and balloon Surface Finishes, FlagNotes, and more using smart OCR settings.
- Customize balloon numbering patterns and views for better organization.

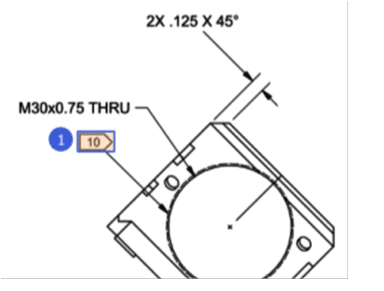

Flag Note Detection
Flag Note Detection
Flag Note Detection
Designed for Real-World Challenges
Auto-Ballooning addresses common issues manufacturers face when working with diverse drawings, including:
- Optimize Time: Automatically handle the majority of dimensions while using manual tools only for exceptions.
- Handle Complex Layouts: Advanced OCR profiles adapt to variable fonts, spacing, and formats.
- Improve Data Accuracy: Extract title block text to populate fields like Part Number or Part Name directly.
Auto Ballooning 2D Drawings
Take Control with Advanced Features
- Protected Areas: Exclude specific regions of a drawing to refine OCR results.
- Extension Templates: Automatically apply predefined dimensional requirements for common features.

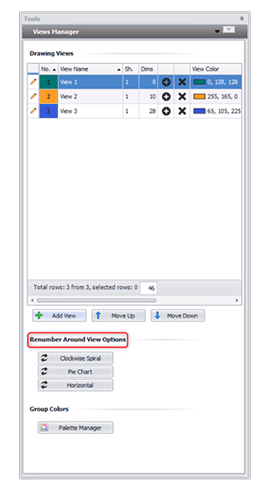

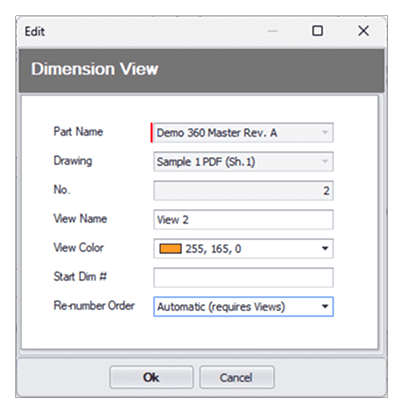

- Views Manager: Separate drawings into manageable views, define numbering patterns, and color-code dimensions for clarity.
Discover More
Streamline your inspection planning with HighQA’s Auto-Ballooning tool. Learn how it uses OCR technology to automatically identify and balloon 2D drawings, ensuring faster and more accurate inspection processes. Schedule a demo today to explore how Auto-Ballooning can save you time and reduce errors.
