Balloon and Extract GD&T/PMI Data with One-Click.
It's that Simple!

Can Geometric Dimensioning and Tolerance (GD&T) Extraction
Really Be Automated?

YES!

Webinar

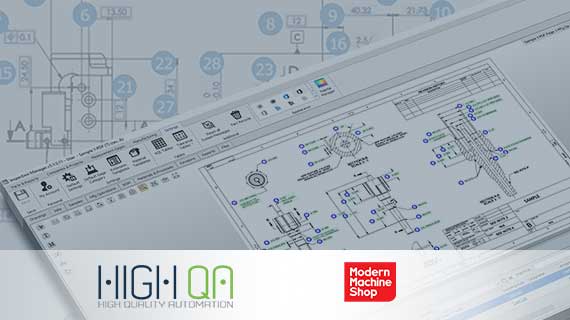

A Modern Machine Shop webinar on August 5, 2021 discussed how GD&T data extraction can be automated using High QA’s pioneering technology.

PLAY RECORDED WEBINAR

Recorded webinar will be available 2 days after the live webinar is concluded.

High QA Partner MapInspection Manager one-click ballooning and GD&T extraction for quality inspection

Demonstration

Balloon your drawings and extract GD&T data with one click. See it for yourself.

Request a no obligation demo now.

REQUEST A DEMO

How Do You Balloon Drawings and Extract GD&T/PMI Data?

Manual Process

Cumbersome
Inaccurate
Time Consuming
Inconsistent

Hundreds of balloons need to be hand-drawn. Dimensions and notes need to be manually entered into a spreadsheet. Interpretation and data entry errors lead to inaccuracies in quality.

Automated Process

Simple
Repeatable
Accurate
Fast

Inspection Manager is an efficient, automated digitized solution to balloon drawings and extract GD&T/PMI data into a useable dynamic bill of characteristics.

Balloon your drawings and create bill of characteristics
in minutes, not hours or days

One-Click

Automatically balloon and extract GD&T/PMI data using sophisticated OCR technology

No Cut and Paste

Prevents data entry and human interpretation errors

One Consistent Data Source

Replaces multiple paper documents with digital files stored in a centralized database

Manage All Drawings and Bill of Characteristics

Utilizes an all-in-one manufacturing quality management software
High QA provides one-click auto-balloning for quality processes

Video

WATCH

Brochure

DOWNLOAD

Article

READ

Take the frustrations out of your ballooning process.

See how ballooning and GD&T/PMI data extraction should be done.
REQUEST A DEMO

Revolutionary Features and Benefits

One-click creates ballooned drawings and extracts GD&T from 2D drawings
Automatic ballooning and extraction PMI data when opening a 3D MBD file
Accurate recognition of GD&T/PMI data with innovative Optical Character Recognition (OCR)
Support for multi-page drawings
Assign inspection tools, criticality designators and material specifications dynamically to the bill of characteristics
Easily adjust balloon colors, shapes, and arrows
One-click automatic conversion between metric/imperial units
Revision controls automatically update balloons and GD&T data
